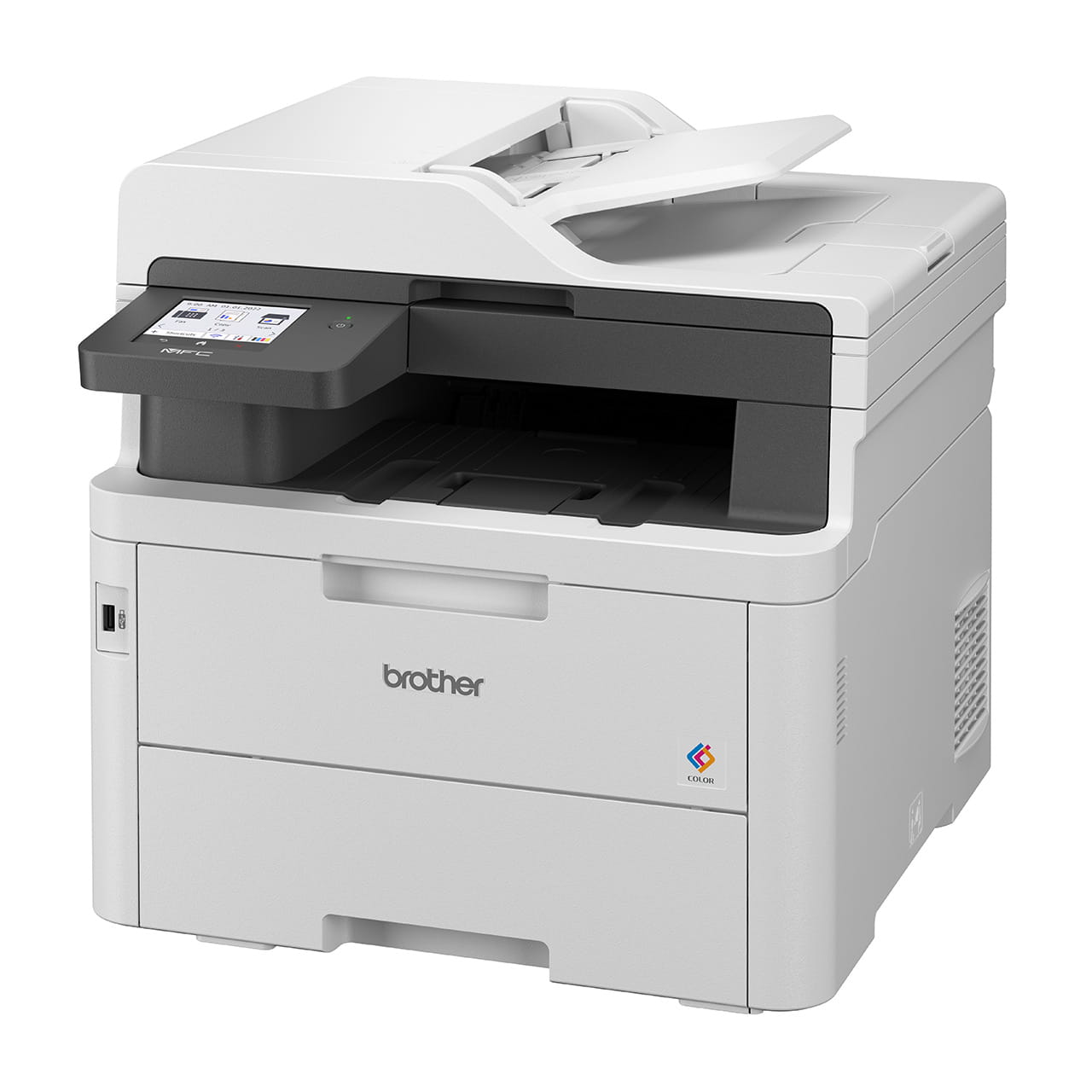

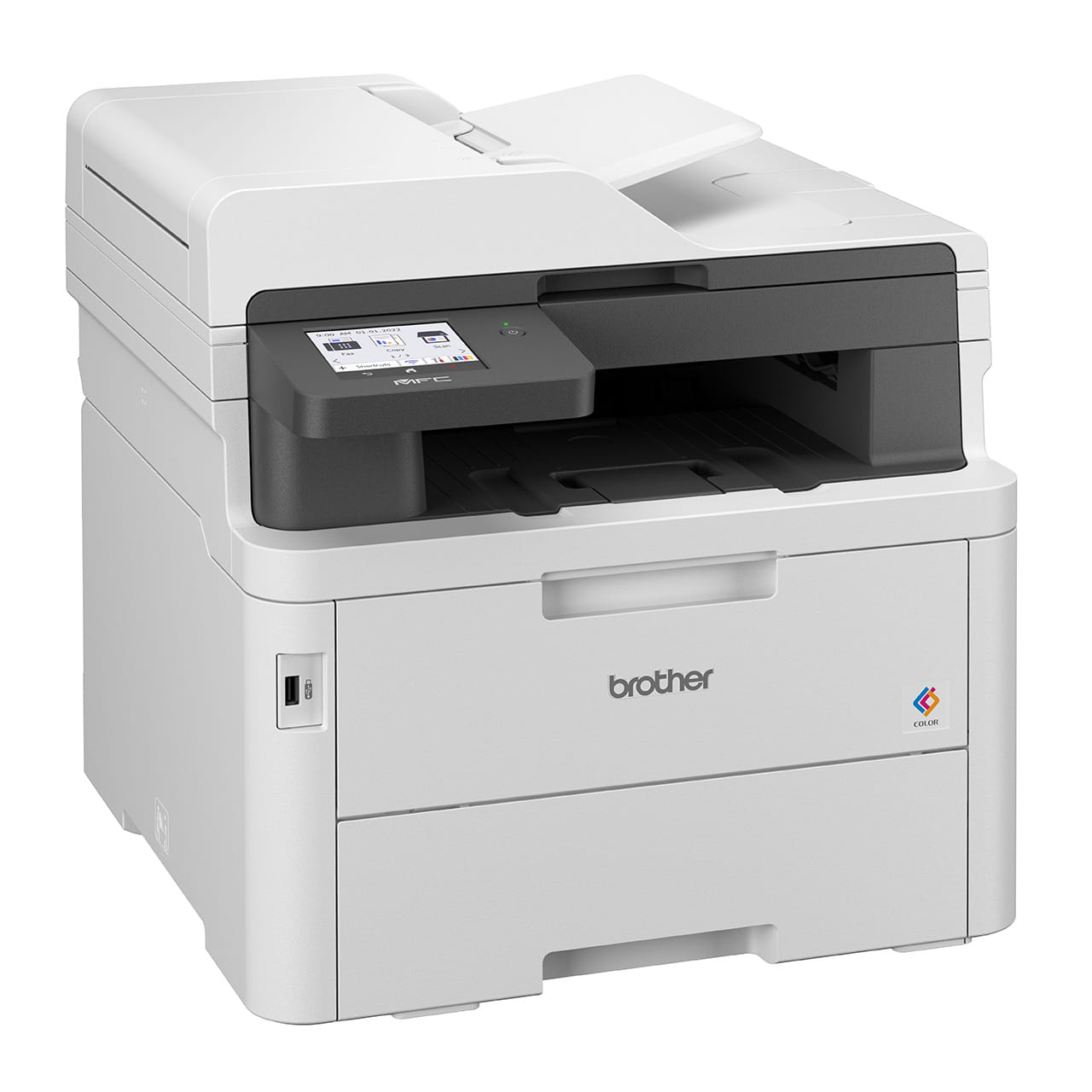

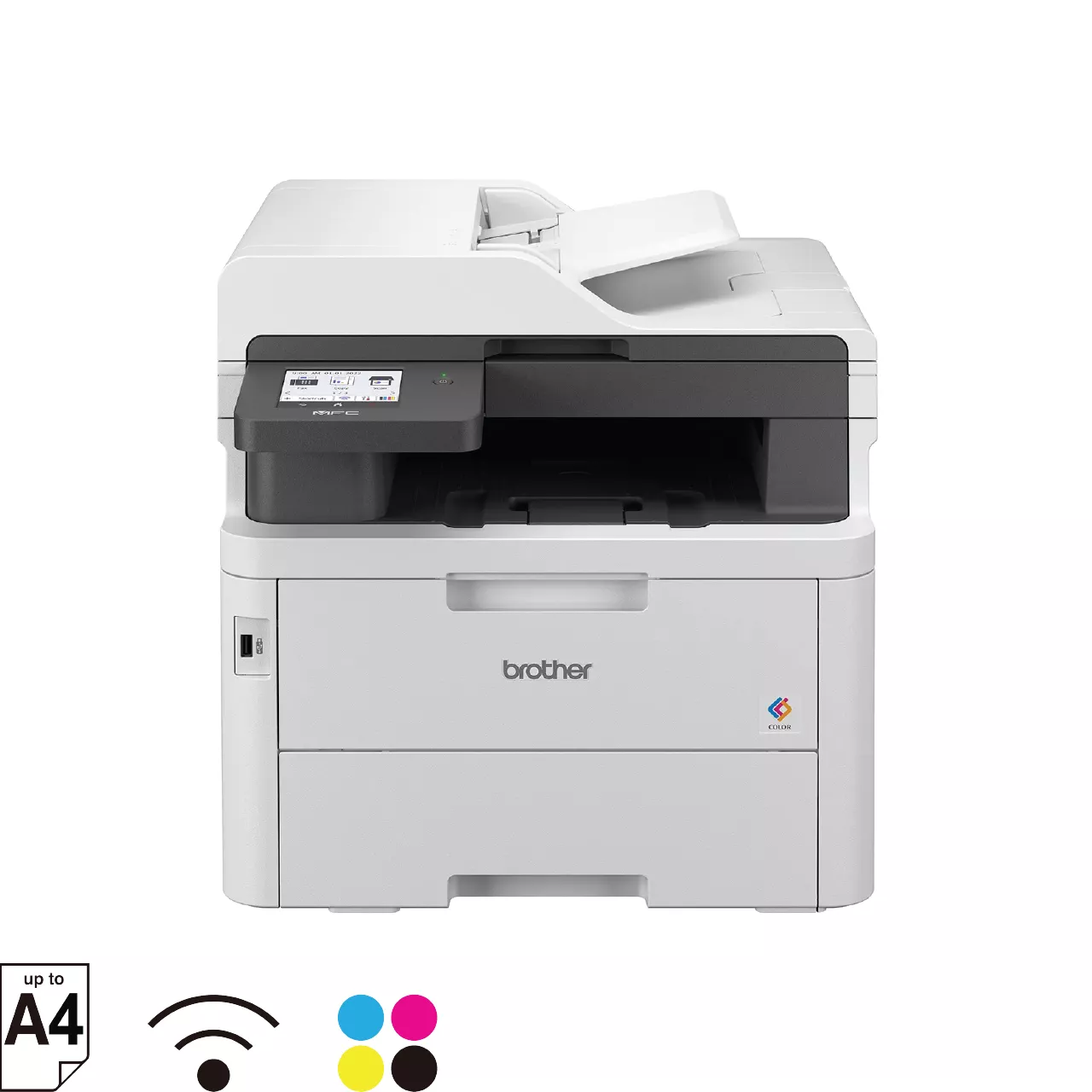

Compact Colour Laser LED Multi-Function Printer
- A4 print speed up to 24 ppm (Black/Colour)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, NFC connectivity, USB 2.0
- Auto 2-sided (Duplex) printing, 50 sheets dual CIS Auto-Document Feeder (ADF), 3.7” Colour LCD touchscreen
- Full capacity toner included. Yield up to 1000/1000 pages (black/colour)*
- Compatible with Brother iPrint&Scan Mobile App
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
410 mm × 444 mm × 410 mm
Weight
20.4 kg
Print Speed
Up to 26 (Mono) / Up to 26 (Colour) ppm (A4)
Up to 27 (Mono) / Up to 27 (Colour) ppm (Letter)
Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
Paper Size
A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Resolution
600 x 600 dpi, 2,400 dpi class (600 x 2400) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Maximum Paper Capacity
Up to 1 sheet
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Colour / Monochrome
Yes
Yes
Enlarge/ Reduce
25 to 400% (in increments of 1%)
Resolution
Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Fax
Compatibility
ITU-T Super G3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
PC Fax - Sending
Yes
PC Fax - Receiving
Yes
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Display & Memory
Display Type
8.76cm (3.5") Colour Touchscreen LCD
Memory Capacity
512 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 70 W
Power Consumption - Sleep
Approximately 10 W
Power Consumption - Power Off
Approximately 0.04 W
Noise Level
43 dB(A)
Supported Operating Systems
Supported OS
Windows® Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11
