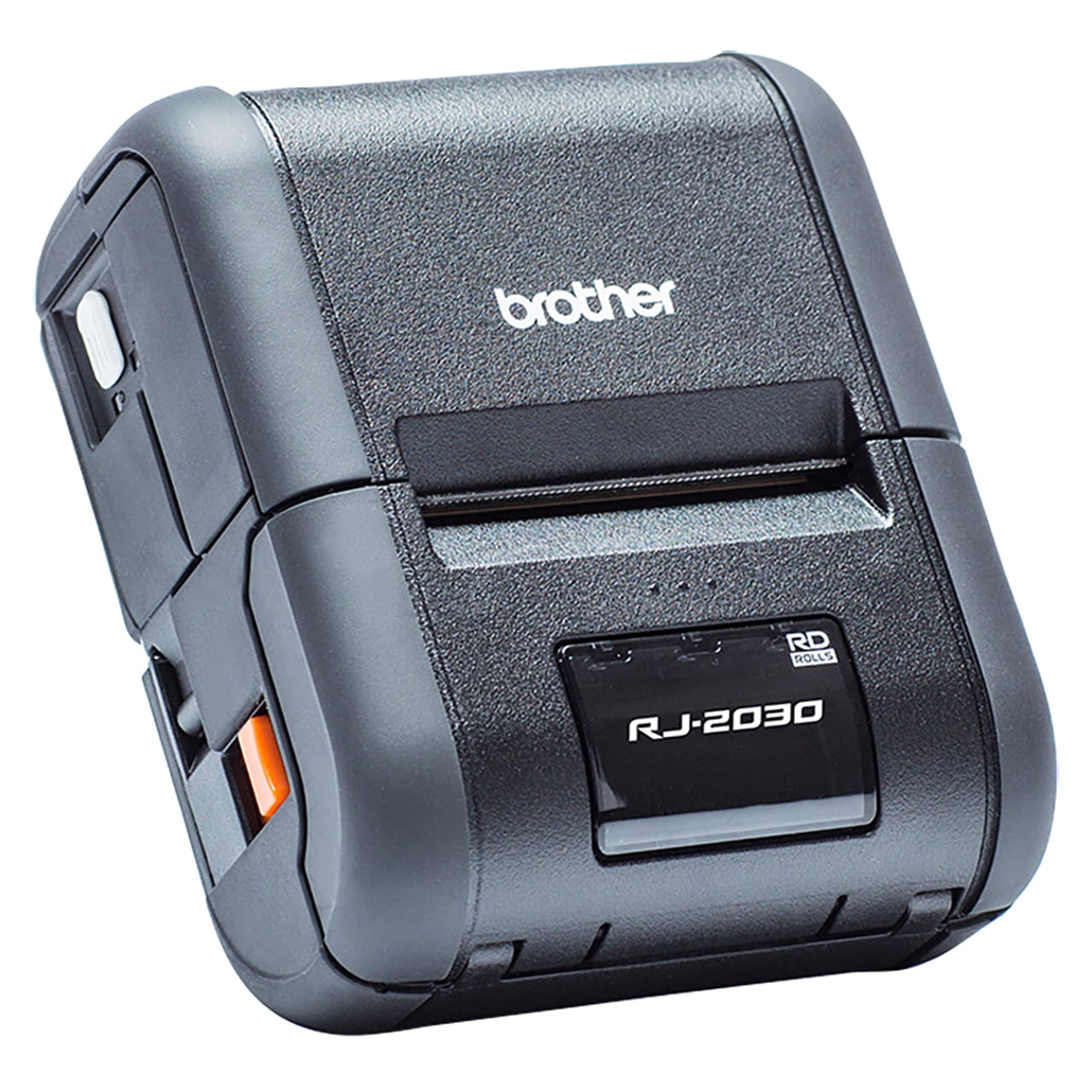

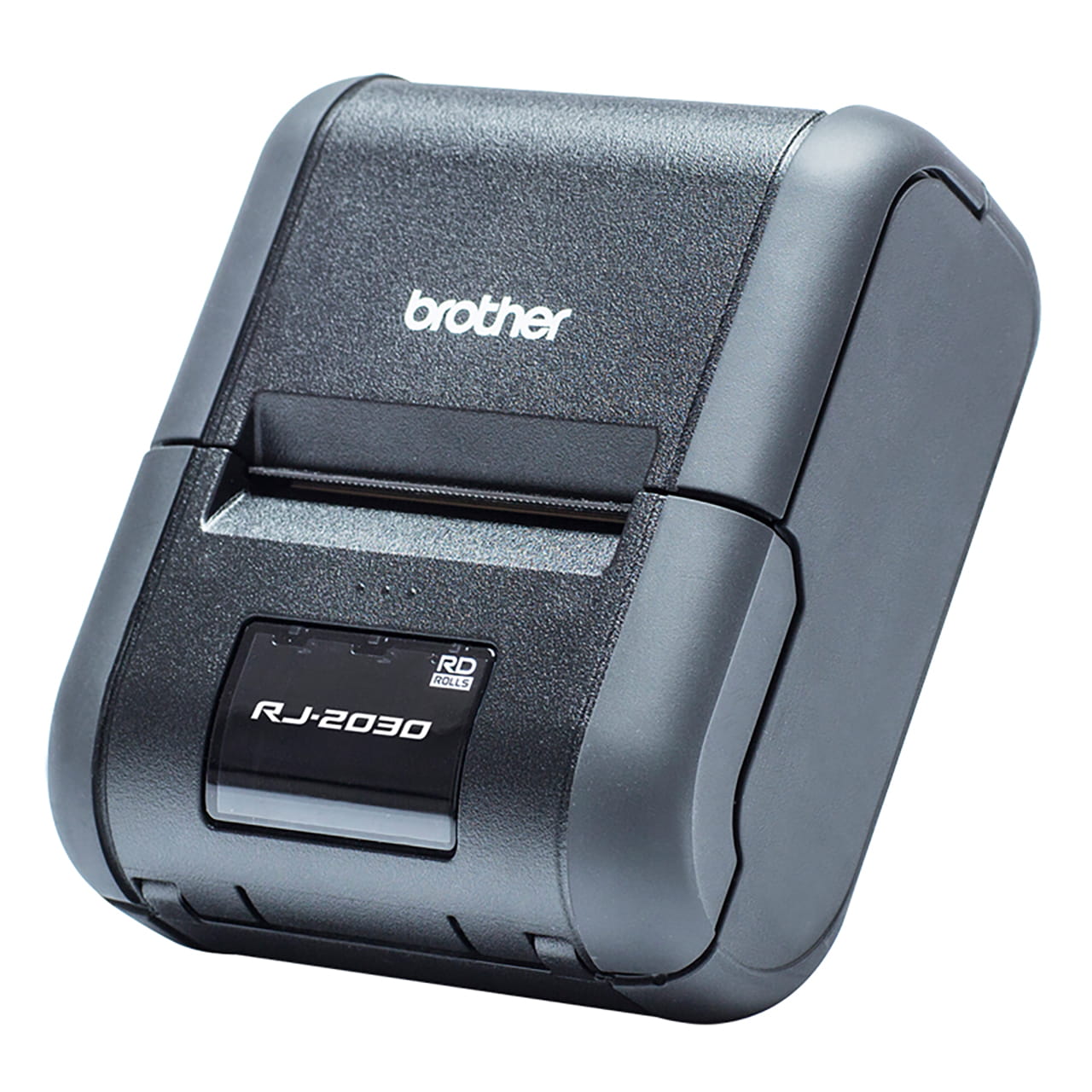

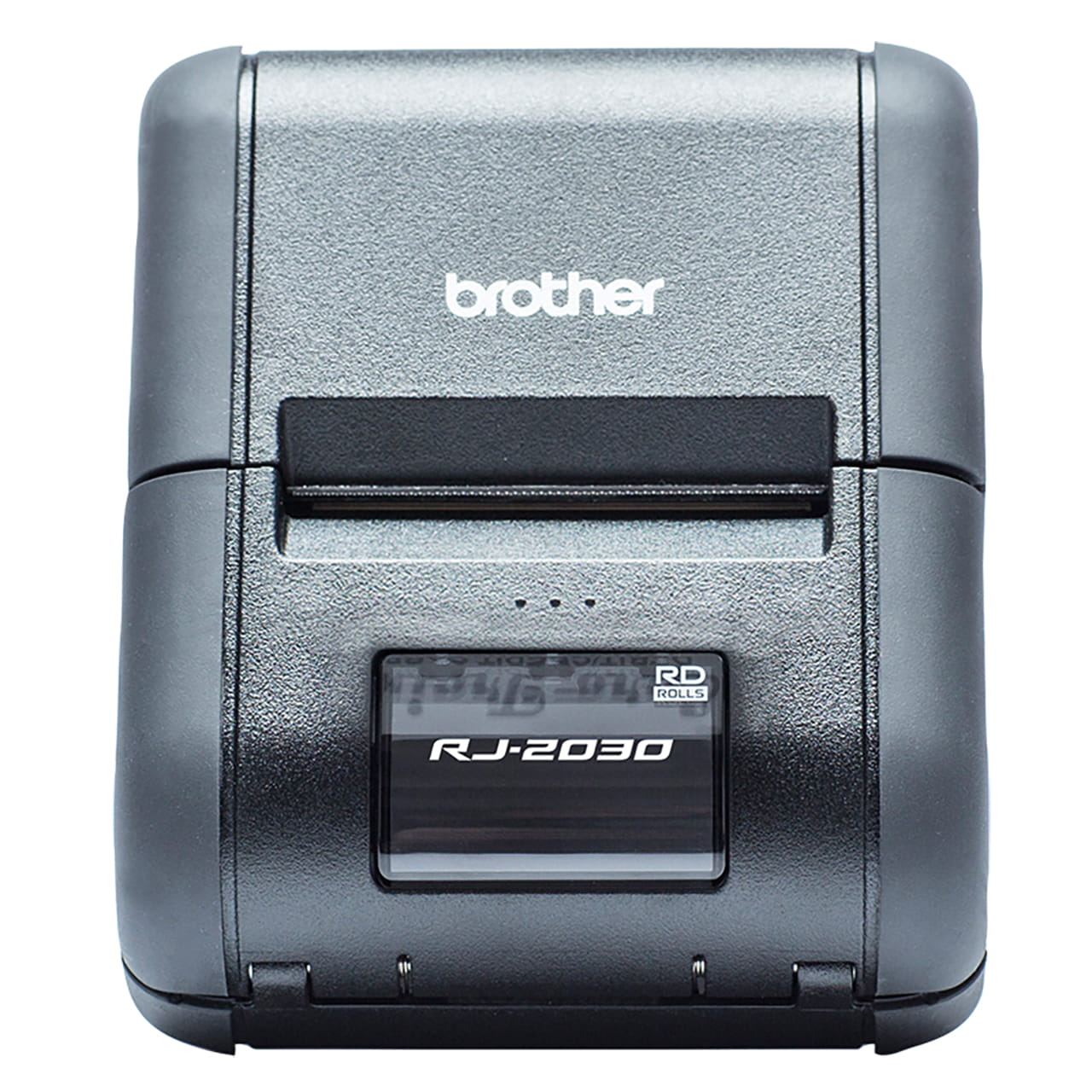

Mobile Printer with Bluetooth® Wireless Connectivity
- Print up to 58mm RD rolls width
- USB and Bluetooth® wireless connection
- Tear Bar
- Rugged with 2.5m drop protection
- IP54 protection rating
- Optional accessories available
Information
Overview
Specifications
Basic Specs
Functions
Product Dimensions (Width X Depth X Height)
122 mm × 100 mm × 57 mm
Weight
465 g
Print Speed
Ave: 6ips or 152 mm / sec (under Brother standard environment)
Sealing
IP54
Maximum Paper Capacity
Receipt, Label (with black mark only)
Resolution
203 dpi
Printing Width
Up to 58 mm
Barcode
Code39, Code93, Code128, ITF(I-2/5), EAN-8, EAN-13, UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR, GS1-128(UCC/EAN-128), RSS symbols, POSTNET, MSI, QR Code (Model 1, Model 2, Micro QR), PDF417 (Standard, Truncate, MicroPDF417), Data Matrix(ECC200 Square, ECC200 Rectangular), MaxiCode, Aztec
Connectivity
Connectivity
Bluetooth® Classic, USB 2.0 Full Speed Mini B
Display & Memory
Display Type
Mono LCD
Memory Capacity
32 MB
Operation
Temperature Operating
-10°C to 35°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touchTemplate, ZPLII emulation, CPCL emulation
Show More
Show Less
