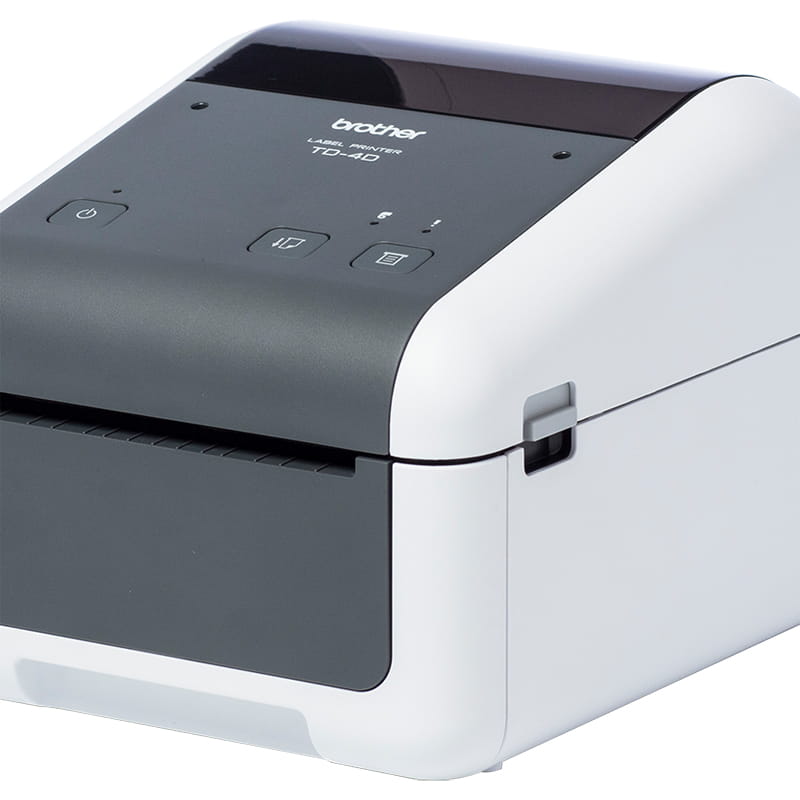

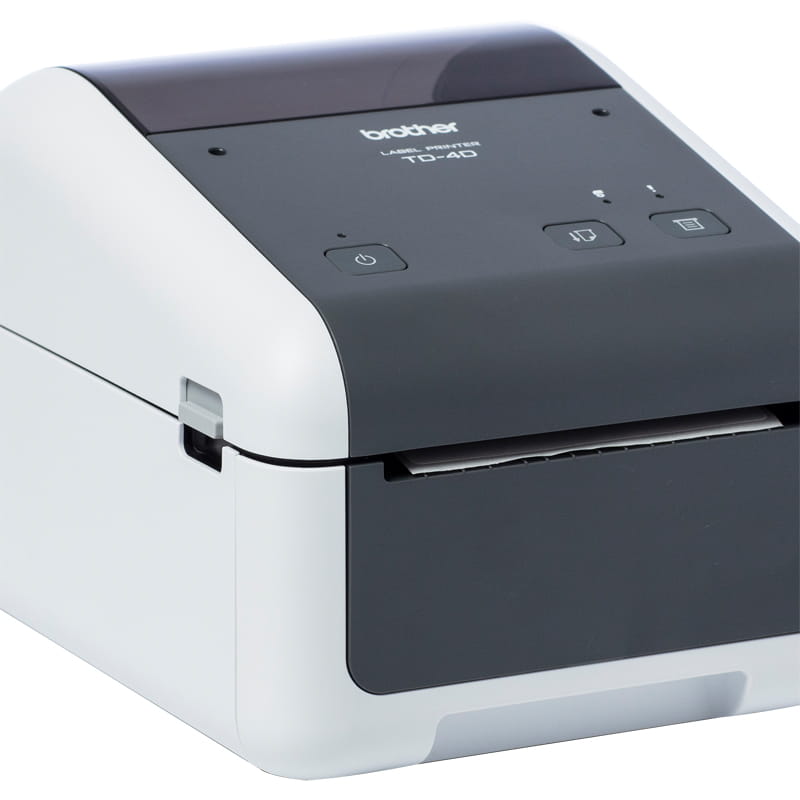

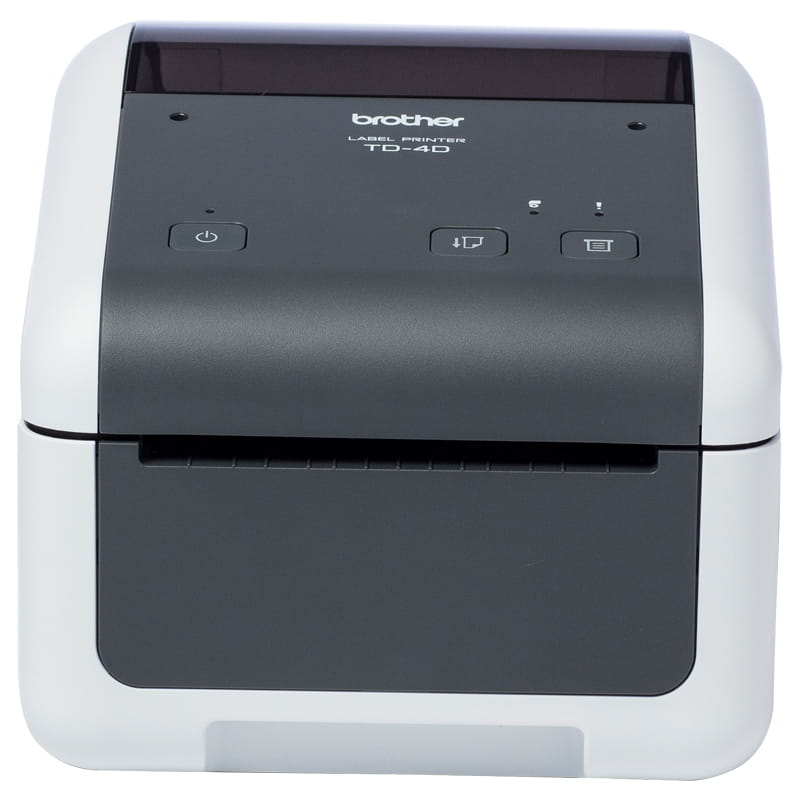

Professional Label Printer for Healthcare, Logistics, Retail and Food industry
- Print up to 118mm RD rolls width
- USB, Serial and Wired LAN connection
- Tear Bar
- Automatic media calibration
- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview
Specifications
Basic Specs
Keyboard
No Keyboard
Display Type
SVGA/High Color or more
Media Type
RD rolls, Wristband, Continuous, Die Cut, Fan Fold, Perforated ,Tag, Non-proprietary media
Available Tape Widths
Up to 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Resolution
203 dpi
No. Of Printable Lines
Adjustable within 118mm width
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. ITF(I-2/5)
4. EAN-8(JAN8)
5. EAN-13(JAN13)
6. UPC-A
7. UPC-E
8. CODABAR (NW-7)
9. GS1-128 (UCC/EAN 128)
10. GS1 Databar (Standard (Omnidirectional)/Truncbated/Stacked/Stacked Omnidirectional/ Limited/Expanded)
11. CODE93
12. POSTNET
13. UPC/EAN EXTENSION
14. MSI
15. Intelligent Mail Barcode
16. QR Code (model 1, model 2, micro QR)
17. Maxicode
18. PDF417 (Standard, Truncate, MicroPDF417)
19. Data Matrix (ECC200 Square, ECC200 Rectangular)
20. Aztec
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB
Media
Maximum Roll Width
19 ~ 118 mm
Printing Width
Up to 104.1 mm
Functions
Cutter
No cutter. Optional: PA-CU-001 cutter
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
64MB
Memory Buffer Size
64MB
Power
Power Source
Bundled with PA-AD-002 AC Power Adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation
